Acura TSX, 2009

Acura TSX, 2009

Acura provided a one-two punch with the world debut of the all-new second-generation Acura TSX sports sedan along with the appearance of the redesigned RL luxury performance sedan at the New York International Auto Show today. With new engines, refined drivetrain, and Acura's latest Keen Edge Dynamic styling, the all-new Acura TSX and RL highlight a new direction for Acura sedans.

Producing 201 hp from a 2.4-liter engine, the DOHC VTEC in-line 4-cylinder now delivers its power across a much wider rpm range. Along with more torque, the new 2.4L is also cleaner as it meets EPA TIER 2-BIN 5 and CARB LEV II Ultra Low Emission Vehicle standards.

Merging crisp, dynamic design with a bold new signature Acura grille, the 2009 Acura TSX is more distinctive and sporty. Due to its greater length and width, wider track, and longer wheelbase, the new Acura TSX provides additional interior room while new fully independent front and rear suspension with dual-stage dampers provides more agile handling.

Performance improves with the 2009 RL thanks to a new 300 horsepower V-6 that incorporates the first ever SOHC use of VTEC valvetrain actuation for both the intake and exhaust valves. The top-of-the-line Acura furthers cutting edge technology with the addition of new high-tech items including AcuraLink weather, AcuraLink Traffic Rerouting™, a new Note function for XM Radio, Active Sound Control, and Bluetooth Audio to an already robust list of features found on the previous RL. To enhance handling, new chassis technology abounds in the form of enhanced Super Handling All-Wheel Drive™, a revised steering system, firmer coil springs, better performing shock absorbers, larger rear stabilizer bar, and larger wheels and tires.

Acura TL, 2009

Acura TL, 2009

Powertrain
A choice of two different all-aluminum VTEC engines enables the new 2009 Acura TL to satisfy a wide range of customers. Standard is a 3.5-liter V-6 producing 280 horsepower and 254 lb-ft of torque that sends power to the front wheels through Acura's sophisticated Sequential SportShift 5-speed automatic transmission with steering-wheel- mounted paddle shifters and Grade Logic Control. Though powerful, the new engine is also fuel efficient, with projected EPA fuel economy ratings of 18 mpg city and 26 mpg highway.

Body/Chassis
Major improvements in structural engineering for the unit-body further define the 2009 Acura TL. The list of substantial changes begins with the relocation of frame rails inside (rather than underneath) the vehicle's floor pan, resulting in a nearly flat body underside. Benefits of this design include improved crash safety, a significant reduction in interior noise levels, and reduced aerodynamic drag that helps enhance fuel economy. Another significant improvement is the increased use of high-strength steel, which simultaneously improves the unit-body's overall strength while helping to reduce weight. For additional weight savings, aluminum is used for the hood, the front suspension subframe and rear suspension knuckles.

Ride quality and passenger comfort benefit from the 2009 Acura TL's larger exterior dimensions. Featuring 6.0 inches greater exterior length, 1.8 inches more overall width and a modest 0.5-inch increase in overall height, the Acura TL is noticeably larger than its predecessor.

The larger body size directly contributes to greater interior roominess; it also allows a 1.4-inch longer wheelbase to improve ride quality and a significantly wider track (1.1 inches wider in front, 1.8 inches wider in the rear) helps generate even more tenacious cornering power. The Acura TL employs a double-wishbone independent front suspension and a multi-link independent system in back.

Further improving ride quality and road-holding are new dual-stage "blow off" style hydraulic suspension dampers, new hydro-compliant bushings (used to mount the transmission and key suspension components) and a new "smart" engine mount design. On the Super Handling All-Wheel Drive (SH-AWD) model, more performance-minded suspension and brake tuning, larger wheels/tires, racing-inspired front brake cooling ducts, and specially-tuned Electric Power Steering (EPS) take the enthusiast's driving experience to an even higher level.

Exterior/Interior
An evocative and powerful exterior body design dramatically advances the Acura TL's image as a performance luxury sedan. Designed by Acura in Southern California, the Acura TL utilizes an array of styling techniques to express motion - and emotion - even when the car is at rest. Featuring Acura's new signature front grille, body sides defined by strong character lines, sweeping C-pillars and new LED taillights, the 2009 Acura TL is simultaneously Acura and yet wholly unique. Plentiful use of luxury and performance features add visual appeal while adding to the Acura TL's vigorous statement - including bright HID projector-beam front headlights, pronounced wheel arches, a standard power moonroof and genuine stainless-steel body trim.

Wheels and tires are as expressive as the exterior styling. Standard on the 2009 Acura TL are 17-inch aluminum wheels with P245/50R17 all-season Bridgestone Turanza or available Michelin Pilot tires for confident year-round performance. The Acura TL SH-AWD comes with 18-inch aluminum wheels with lower-profile P245/45R18 Michelin Pilot tires for more agile handling. Finally, the Acura TL SH-AWD offers available 19-inch aluminum wheels with aggressive P245/40ZR19 Michelin Pilot Sport PS2 summer tires for the ultimate Acura TL performance experience.

In keeping with its mission as a driver's car, the 2009 Acura TL interior features a new "dual personal" layout that provides both the driver and front passenger with their own personal space. Thanks to its larger exterior dimensions, the new Acura TL has 1.3 inches more rear legroom and 0.5-inch of added rear shoulder room compared to the previous generation Acura TL.

Acura's commitment to luxury and technology becomes apparent from the first moment the driver's door is opened. With sweeping shapes, generous use of premium materials and passionate attention to detail, the Acura TL rewards the discriminating eye. The design and execution of the interior is an artful combination of leather surfaces, accented by metallic and wood-pattern trim. An impressive array of premium standard features includes a power moonroof, dual-zone adaptive climate control, 10-way adjustable (8-way power seat with 2-way power lumbar support) driver seat, 8-way adjustable power front passenger seat, and steering-wheel-mounted F1-style paddle shifters for the Sequential SportShift automatic transmission. A

Audiophiles with appreciate the new Acura/ELS Surround 10-speaker, 440-watt premium sound system with DVD-Audio, CD, DTS, AM/FM radio, XM Satellite Radio and 2,500-song hard disk drive (HDD) media storage. An intuitive interface dial as well as sophisticated voice recognition capability simplifies control of this impressive technology. Premium Milano leather seating surfaces included in the Technology Package further enhances comfort and visual appeal.

Safety
Advanced Compatibility Engineering (ACE) represents a major advance in structural engineering for the 2009 Acura TL. In simple terms, ACE™ better dissipates crash energy in a severe frontal collision through the use of dedicated load-bearing frame structures that efficiently distribute crash energy through the body structure-while also helping to preserve the integrity of the passenger compartment. Acura first introduced ACE™ to the Acura line for the 2005 model year and its inclusion in the 2009 Acura TL means that every vehicle in the Acura model range now has this advanced safety engineering.

Six airbags and a new active head restraint system for the driver and front passenger headrests top the long list of passive safety features built into the new Acura TL. The airbag array includes dual-stage, dual-threshold front airbags, new dual-chamber front seat side airbags with front passenger seat Occupant Position Detection System, along with side-curtain airbags for all outboard seating positions. Additional passive-safety features include 3-point seatbelts and head restraints for all seating positions, driver and front passenger seatbelt load-limiters with an automatic tensioning system and a Lower Anchors and Tethers for CHildren (LATCH) system that permits quick, secure attachment of up to two child seats in the rear seating area.

The new Acura TL includes sophisticated active safety features including powerful 4-wheel disc brakes (with ABS, EBD and Brake Assist), Vehicle Stability Assist (VSA), Tire Pressure Monitoring System (TPMS), all-season tires and an available SH-AWD system. Adding to the list of standard exterior safety features are daytime running lights (DRL) along with 2.5-mph front and rear bumpers.

The 2009 Acura TL is designed to meet the latest crash-safety regulations, including the new FMVSS214 side crash standards (which the TL meets three years early) and the new FMVSS301 rear crash standards. Internal testing indicates that the 2009 Acura TL should achieve the highest ratings in National Highway Traffic Safety Administration (NHTSA) and Insurance Institute for Highway Safety (IIHS) crash tests.

The 2009 Acura TL is assembled in Marysville, Ohio and is covered by a comprehensive 4-year/50,000 mile bumper-to-bumper limited warranty and a 6-year/70,000 mile powertrain limited warranty. Additional benefits of ownership include Acura Total Luxury Care (TLC), which provides free 24-hour roadside assistance, concierge service and trip routing.

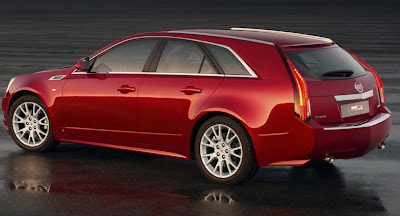

Cadillac CTS Sport Wagon, 2010

Cadillac CTS Sport Wagon, 2010

Amidst the beauty and history of the Pebble Beach Concours d'Elegance, Cadillac treats car enthusiasts to a world premiere of its latest production-car design. The 2010 Cadillac CTS Sport Wagon makes its debut on the Monterey Peninsula, showcasing a dramatic design that elevates and updates the classic wagon body style.

Not unlike many historic Cadillac designs, the new Cadillac CTS Sport Wagon is an unmistakable and dynamic presence. The car's intricately cut rear profile injects fashion-forward design into the formerly utilitarian world of wagons. Cadillac's upcoming wagon offers ample interior space and includes a range of six-cylinder engine choices, making it a compelling alternative to larger utility vehicles.

Based on the hot-selling Cadillac CTS sport sedan, and a sister vehicle to the Cadillac CTS Coupe Concept, the Sport Wagon extends the design-driven renaissance of Cadillac. Following this special premiere at Pebble Beach, the Cadillac CTS Sport Wagon moves to the worldwide auto show circuit this fall - and into Cadillac dealerships in spring 2009.

A striking profile is created with the Cadillac CTS wagon, with a silhouette that suggests speed and aerodynamic efficiency. It rides on the same 113.4-inch (2,880-mm) wheelbase as the Cadillac CTS sport sedan and is 0.3-inch (7 mm) shorter. However, it offers a generous cargo area of 25 cubic feet (720 liters) behind the rear seats. Design highlights include:
    * Signature V-shaped deck and tailgate motif
    * Large, vertical taillamps with light-pipe technology
    * Power-opening liftgate (via key fob or in-vehicle button)
    * CHMSL integrated in subtle roof spoiler
    * Integrated roof load management system with cross bars for a seamless appearance
    * Cargo management system with adjustable in-floor containment
    * New 19-inch wheels
    * Larger available panoramic rear sunroof

The Cadillac CTS Sport Wagon, like its sedan predecessor, includes available features such as all-wheel drive, a 40-gigabyte internal hard drive, pop-up navigation screen and a hand-cut-and-sewn interior with Sapele wood accents.

Design details
Dramatic planes highlight the Cadillac CTS wagon's design, including a V-shaped motif carried throughout the vehicle and carefully integrated intersections of exterior surfaces. The elements coalesce in a dramatic fashion, creating tension that emphasizes the vehicle's performance.

The emotion of the Cadillac CTS Sport Wagon's design is carried by a number of nuanced details. The liftgate area, for example, is a confluence of angles and planes that typifies the vehicle's design tension. Cadillac's "V" motif is most prominent here, culminating in a spine at the center of the liftgate that is accented with a subtle spoiler at the top of the backlight. The rear quarter panels extend slightly beyond the inward-angled planes of the V, creating a distinctive W shape at the rear of the vehicle. Large, prominent vertical taillamps - with Cadillac's signature light pipe technology - are the final, dramatic touches to the rear-end styling.

One of the more interesting integrations of form and function is found in the seamless roof load management system. Rather than stylized stanchions, brackets and cross bars that protrude above the roof line, the Cadillac CTS Sport Wagon's system blends with the roofline, maintaining an uninterrupted appearance. The center section of the roof panel angles downward inside the roof edges, allowing an unobtrusive placement of the cross bars - and creating a subtle fin effect at the trailing edges of the rear panels.

Powertrains
Direct injection technology helps the Cadillac CTS offer more power while maintaining fuel economy and lowering emissions. It delivers fuel more precisely to increase the efficiency of combustion. This means less fuel is consumed and lower emissions created.

With the Cadillac CTS Sport Wagon's 3.6L V-6, direct injection translates to 304 horsepower (227 kW)*, no loss of fuel efficiency and a 25-percent drop in cold-start hydrocarbon emissions. It also runs on less expensive regular unleaded gasoline. The Sport Wagon's fuel economy is expected to be similar to the peak rating of the existing sport sedan's 26 mpg highway rating. The standard 3.6L VVT engine that produces 263 horsepower (196 kW) and 253 lb.-ft. of torque (343 Nm) serves as the base engine in North America.

Just like the Cadillac CTS sport sedan, the V-6 engines are matched with fuel-saving six-speed transmissions, including an Aisin six-speed manual or an electronically controlled Hydra-Matic 6L50 six-speed automatic. As is the case on the sport sedan, Cadillac CTS Sport Wagon includes AWD as an option.

An efficient 2.9L turbo-diesel engine is being developed for Cadillac CTS models primarily in European and Asian markets. It is a compact, dual overhead cam, four-valve V-6 engine from GM's family of diesel engines that delivers optimal fuel economy as well as reduced emissions and noise. The engine is rated at 184 kW (250 hp).

Driving dynamics
The robust and dynamic CTS chassis infuses the new wagon with a great balance of performance and luxury. It uses an independent short/long arm ( SLA) front suspension system and a multi-link rear suspension.

The multi-link rear suspension features a fully isolated subframe that helps deliver excellent suspension kinematics, contributing to a superior ride and excellent handling.

Advanced chassis technology in the form of Cadillac's StabiliTrak electronic chassis control system integrates the car's standard four-channel ABS with the full-function traction control, hydraulic brake assist and engine drag control systems to deliver a safer, more confident driving experience. Additional chassis details include a structure-enhancing tower-to-tower brace under the hood; large, four-wheel disc brakes and premium steering.

Cadillac CTS Sport Wagon Preliminary Specifications
    * Vehicle type: four-door, five-passenger rear-wheel-drive/all-wheel-drive wagon
    * Wheelbase: 113.4" / 2880mm
    * Length: 191.3" / 4859 mm
    * Width: 72.6" / 1842 mm
    * Height: 59.1" / 1502 mm
    * Track: 61.8" / 1570 mm (front); 62" / 1575 mm (rear)
    * Engines: 3.6L VVT V-6 (263 hp / 196 kW) 3.6L V-6 VVT DI (304 hp / 227 kW)
    * Transmissions: Aisin six-speed manual or Hydra-Matic 6L50 six-speed automatic
    * Suspension: four-wheel independent: MacPherson strut front; multilink rear, progressive rate coil springs, monotube shock absorbers
    * Steering: variable-assist rack-and-pinion
    * Brakes: four-wheel disc; aluminum or iron dual-piston front calipers; aluminum or iron single-piston rear calipers
    * Wheels: 17-inch, 18-inch or 19-inch aluminum
    * EPA luggage capacity: 25 cu ft / 720 l (behind rear seats)
    * EPA total volume: 121.9 cu ft / 3452 l

Cadillac Presidential Limousine, 2009

Cadillac Presidential Limousine, 2009

As Americans celebrate the inauguration of a new president of the United States, another new Cadillac will grace Pennsylvania Avenue to lead the proceedings. President Barack Obama will ride in an all-new Cadillac Presidential Limousine, continuing a long tradition of Cadillac limousines that have served many U.S. presidents.

The image of an American president greeting crowds from a Cadillac limousine dates to President Woodrow Wilson and the early days of the automobile, and continues into a historic new era. The latest Cadillac Presidential Limousine is a completely new design, succeeding the DTS Presidential Limousine that debuted in 2004. The new car incorporates many of the dramatic design and technology features of new and highly acclaimed Cadillac vehicles in a purpose-built format tailored to specific and exacting specifications befitting presidential transport.

Inside and out, the Cadillac Presidential Limousine includes many of the brand's signature design elements. Assertive, modern and elegant, the front of the car includes the intricate, dual-textured grille made famous by Cadillac's most popular current models, the CTS sport sedan and Escalade. Vertical design elements, such as the car's front and rear lighting, mirror those used on production models.

For largely functional reasons, such as optimal outward visibility, the car is slightly more upright than its predecessor. However, this new Cadillac Cadillac Presidential Limousine occupies roughly the same overall footprint on the road as the previous model, with a similar size and proportion.

The side and rear profiles of the new Cadillac Presidential Limousine are classic, elegant forms, evocative of Cadillac's STS and DTS luxury sedans. Inside the cabin, the car includes the finest examples of Cadillac's recent renaissance in design, technology and craftsmanship. The cabin blends modern design and technology with old-world craftsmanship. Major aspects of the cabin are cut and sewn by hand, the same process used in popular Cadillac models such as the CTS sport sedan.

Naturally, many purpose-built aspects of the car are specially designed and prepared for presidential use. The rear passenger area includes an extensive executive compartment with ample seating space, outward visibility and useful mobile office features.

The car was designed, developed and tested by specialists who adhered to an extensive set of specifications. It was subjected to an extreme testing regimen to ensure performance that achieves precise functional requirements. In doing so, security provisions were undertaken at all times during development to ensure the car's functional capabilities are preserved and confidential.

An embroidered presidential seal is positioned in the center of the rear seat back panel, as well as on each rear door trim panel. Presidential seals are also affixed to the exterior rear doors. The U.S. flag is placed on the right front fender, and the presidential standard is located on the left front fender when the president travels in the vehicle. High-tech LED spotlights illuminate the flags at night.

History - Cadillac and the U.S. Presidency
Cadillac has built limousines and special vehicles for U.S. presidents, diplomats, ambassadors and foreign dignitaries since the early 20th century, an iconic aspect of the brand that continues today.

Cadillac's central role began during World War I, when many Cadillac engines and cars were transferred to military and government service because of their superior durability and power. One of the first chief executives to use a Cadillac was President Wilson, who rode through the streets of Boston during a World War I victory parade in 1919. A lavish 1928 Cadillac town car was used in the Calvin Coolidge administration.

In 1938, two Cadillac convertibles, dubbed the "Queen Mary" and "Queen Elizabeth," were delivered to the U.S. government. Named after the great ocean liners of the time, the vehicles were 21.5 feet long, weighed 7,660 pounds and were equipped with a full ammunition arsenal, two-way radios and heavy-duty generators. Durable and reliable, the two "Queens" served Presidents Franklin D. Roosevelt, Harry S. Truman and Dwight D. Eisenhower.

President Eisenhower, known as a car buff, rode in one of the first Cadillac Eldorado models ever produced during his 1953 inaugural parade. The Eldorado represented a high point in automobile design history, as it had the first wraparound windshield, a feature quickly adopted on other new production models.

In 1956, the Queen Mary II and Queen Elizabeth II convertibles replaced the original series. The vehicles were slightly smaller, but like their predecessors, were fully armored and featured state-of-the art communications. Moreover, the vehicles were fitted with narrow rims inside the tire in case the tires were shot out. The Queen Mary II and Queen Elizabeth II served not only President Eisenhower, but also Presidents John F. Kennedy and Lyndon B. Johnson. Both vehicles were retired in 1968.

The Ronald W. Reagan administration was delivered a 1983 Cadillac Fleetwood limousine and a Cadillac Fleetwood Brougham - Presidential Series was delivered to the William J. Clinton administration in 1993. Unlike previous models that typically were Cadillac cars adapted and modified by independent limousine companies, the 1993 Presidential Brougham was designed, developed and manufactured totally within General Motors and Cadillac. This included an extensive set of security measures to maintain confidentiality, a process that continues today.

Currently, the 1983 Cadillac Fleetwood limousine resides at the Ronald W. Reagan Presidential Library and Museum in Simi Valley, Calif., while the 1993 Cadillac Fleetwood Brougham is at the Clinton Presidential Center in Little Rock, Ark.

Cadillac has produced two presidential limousines this decade that remain in service. The first was a Deville Presidential model delivered to President George W. Bush in 2001. In 2004, President Bush debuted a new DTS Presidential model. It was the first application of a new design that launched later that year for the production DTS full-size sedan.

Cadillac Escalade Hybrid, 2009

Cadillac Escalade Hybrid, 2009

Cadillac announced the world premiere of the Escalade Hybrid, the world's first fuel-saving hybrid applied to a large luxury SUV. Powered by an innovative, fuel-saving 2-Mode Hybrid system, Escalade Hybrid will deliver more than a 50-percent improvement in fuel economy in city driving - all while delivering the same distinctive style, segment-leading features and full-size capability that have made the Escalade an icon.

Escalade Hybrid is available in 2WD and 4WD configurations. It delivers up to 6,000 pounds (2,722 kg) of usable towing capacity on 2WD models and 5,700 pounds (2,565 kg) on 4WD models. All of Escalade's standard comfort and convenience features are included. This includes an eight-inch, touch-screen navigation system that displays performance readouts of the 2-Mode Hybrid system on the screen.

Escalade Hybrid extends Cadillac's leadership in the large luxury SUV category. Escalade sales have grown in the face of changing sales trends and increased competition. In fact, Escalade sales increased 22 percent in September over year-ago sales. Other models in the Escalade lineup include the extended-length Escalade ESV and the versatile Escalade EXT luxury-utility truck. The Hybrid model is available with the standard Escalade body style.

Patented 2-Mode Hybrid technology

The Escalade's 2-Mode Hybrid system allows it to return exceptional fuel economy in both city and highway while delivering the capabilities of a true luxury SUV. In city driving, this advanced hybrid power system enables Escalade to launch and drive low speeds on electricity alone. As additional power is demanded, the system blends output from the battery and gas engine smoothly.

GM's patented 2-Mode Hybrid system consists of an advanced electrically variable transmission (EVT) and 300-volt nickel-metal hydride Energy Storage System (ESS). These systems work in concert with the standard 6.0L V-8 Gen IV gasoline engine with Active Fuel Management (AFM) and late-intake valve closing (LIVC) technology. AFM enables the V-8 engine to seamlessly shut off half of its cylinders when less power is needed, such as during highway cruising. This new hybrid system not only enables the Escalade Hybrid to drive low speeds on electricity alone, it also allows the 6.0L V-8 engine to operate in its more economical four-cylinder mode for longer periods.

The key to Escalade's 2-Mode hybrid system is that the electric power used to propel the vehicle is generated by the hybrid system itself. When the brakes are applied or the vehicle is coasting, the electric motors within the hybrid system create electricity that is stored in the 300-volt battery. This stored energy is used to move the vehicle and the regenerative braking cycle is renewed.

The 2-Mode Hybrid system provides seamless, dependable power on demand in an efficient package. In fact, its electric motor is less than half the size of those in single-mode hybrid systems. This technology was developed and is still used in fleets of hybrid transit buses on the streets today in dozens of major North American cities. Scaled-down for use in full-size SUVs, the 2-Mode system delivers fuel savings where it is needed most - in large vehicles with high levels of capability. It is a core part of GM's energy diversity efforts, which are centered on reducing dependence on petroleum, improving fuel economy, reducing emissions and minimizing the automobile's impact on the environment.

Cadillac's smooth and quiet power
Acoustic details specific to the Hybrid model ensure it delivers the superior luxury that has been an Escalade hallmark since its inception. The details include:
    * A new exhaust system and resonator specially tuned for the 6.0L LIVC engine's Active Fuel Management operation. It ensures comfortable interior acoustics and a pleasant exhaust note during both V-4 and V-8 operation
    * An electrically driven, 300-volt air conditioning compressor reduces vibration and allows the HVAC system to cool the passenger compartment even when the gasoline engine is shut off. It includes the standard tri-zone climate system
    * An electrically driven, 42-volt variable-assist power steering reduces vibration and provides up to a 0.5-mpg fuel economy improvement by reducing parasitic losses common in belt-driven hydraulic systems
    * The Energy Storage System cooling system's internal fan is tuned to be quiet at low vehicle speeds, when the fan could more easily be heard by the occupants.

Escalade aesthetic

The Escalade Hybrid retains the qualities that have made it the leading large luxury SUV and a standard-bearer of Cadillac's overall product renaissance. It is instantly identifiable as a Cadillac and incorporates styling cues from the landmark Sixteen concept vehicle, including a detailed signature grille, front fender vent ports and layers of chrome accents.

The Escalade's warm and inviting interior features a premium layout. It is available in two colors, Ebony and Cashmere. Standard features include a distinctive instrument panel; gauges with white needles and blue light inlays with continuously lit, white-LED backlighting; Nuance leather-covered seats; leather-covered door trim and center console; and a power-assisted rear liftgate that opens and closes with the touch of a button.

Cadillac CTS-V, 2009

Cadillac CTS-V, 2009

The new CTS sport sedan earns accolades and new owners, Cadillac takes the next leap forward by premiering the 2009 Cadillac CTS-V, the brand's ultimate expression of performance and luxury.

Launching in the fourth quarter of 2008, the all-new Cadillac CTS-V intends to combine the serious performance of an elite sports car with the poise and elegance of a prestigious luxury sedan. Part of Cadillac's acclaimed V-Series of high-performance models, CTS-V delivers an estimated 550 horsepower (410 kW). More than just power, CTS-V also includes a comprehensive suite of technical and design enhancements, including Magnetic Ride Control, an industry-first Performance Traction Management program and the addition of a new automatic transmission with paddle-shift control.

Several key technical and design elements combine to transform the already highly capable CTS into the new V-Series. Like the existing CTS, the V-Series is the product of an intensive development process across North America and Europe, including famed test tracks and millions of miles of road. Supporting Cadillac's ongoing global expansion, the 2009 Cadillac CTS-V is planned to be offered outside North America for the first time, including exports to Europe, the Middle East and Asia.

Sophisticated technical enhancements
The 2009 Cadillac CTS-V features the world's fastest-reacting suspension technology, Magnetic Ride Control (MRC). It uses shocks controlled by electro-magnets, rather than mechanical valves, greatly accelerating response time. Electronic sensors at all four wheels literally "read the road" every millisecond, making constant adjustments to damping to create virtually instantaneous and extremely precise control of body motions. This is of particular benefit for a high-performance sedan, helping to keep the car very composed during hard cornering, acceleration, braking and other dynamic maneuvers.

MRC technology first appeared on the Cadillac STS performance sedan and has been used on some of the world's most celebrated cars, including the Chevrolet Corvette and a select few European sports cars.

Enabling the precise control expected in a high-performance sedan, the CTS-V features Performance Traction Management system, borrowed from championship racing teams. This technology uses advanced electronics to manage engine torque for optimal traction during acceleration. In situations such as acceleration from a stop or exiting corners, Performance Traction Management regulates torque delivery for the best possible launch.

Performance Traction Management uses the same sort of electronics as stability control programs such as Cadillac's StabiliTrak system, but applies it in a different manner. Rather than monitoring and controlling wheel slip to assist in stopping or slowing the car, PTM regulates torque delivery to instantly match the available tire grip for maximum acceleration.

CTS-V  includes sophisticated braking and tire systems, in partnership with two companies renown for high-performance technology: Brembo and Michelin. Brembo brakes are at all four corners and include powerful, six-piston calipers in the front and four-piston calipers in the rear. Michelin worked with Cadillac engineers to develop its acclaimed Pilot Sport 2 (PS2) summer tire for Cadillac CTS-V and its 19-inch wheels.

And, of course, there is the matter of power. It has increased nearly 35 percent for the '09 CTS-V, via a new 6.2L LSA supercharged V-8 engine generating an estimated 550 hp (410 kW) and 550 lb.-ft. (745 Nm) of torque. The engine delivers this power with remarkable refinement. A sixth-generation Eaton supercharger minimizes the added noise previously associated with supercharged engines, and tightly controls intake air temperature for optimal performance.

Transmission choices include either a six-speed manual or an exclusive, six-speed automatic with steering-wheel-mounted paddle shifters. It is the first automatic offered on the CTS-V.

Accentuated design elements
The 2009 CTS-V extends Cadillac's acclaimed design language, both inside and out. The V-Series includes all the elements of the CTS sport sedan's well received cabin, while adding some elegant and purposeful accents.

V-Series will offer Recaro performance driving seats, providing excellent support for spirited driving and adding to the luxurious and purposeful interior. These new, 14-way adjustable performance seats include pneumatic bolster controls in the seat cushion and backrest.

A microfiber material is added to the steering wheel, seats and shifter, providing the soft feel and luxurious appearance of suede without suede's inherent drawbacks of difficult care and moisture sensitivity. These accents on the steering wheel, seat inserts and shifter are elegant to the touch and help support high-performance driving.

The car's integrated center stack is trimmed with a new Obsidian material that is also applied to the center console and door trim. Just like every CTS, the V-Series includes a hand-stitched instrument panel, door trim and center console. Leading-edge infotainment features, including a 40-gigabyte hard drive, advanced navigation system with a "pop-up" screen and Bose digital surround audio, extend to the V-Series, as well as factory-installed Bluetooth capability.

The exterior of the new Cadillac CTS-V amplifies the assertive stance and elegant details of the standard car, and communicates the car's remarkable capabilities. The dihedral Cadillac grille is larger to enable more air intake and features a satin finish. The raised hood encompasses the supercharged engine, and new front and rear fascias identify the vehicle as a V-Series. The car's 19-inch wheels enhance its stance on the road.

The founding member of the V-Series, Cadillac CTS-V was initially offered in 2004 and sold primarily in North America through the 2007 model year. The supercharged STS-V and XLR-V were added in 2006 to make the V-Series an exclusive trio of models all capable of zero-to-60 acceleration in less than five seconds with enhanced overall performance and luxury features.

Engine
    * Type: 6.2L supercharged V-8 (LSA)
    * Displacement (cu in / cc): 376 / 6162
    * Bore & stroke (in / mm): 4.06 / 103.25 x 3.62 / 92 mm
    * Block material: cast aluminum
    * Cylinder head material: cast aluminum
    * Valvetrain: overhead valve, 2 valves per cylinder; 0.492-in (12.5 mm) lift
    * Supercharger: Gen. 6 R19 with single brick intercooler; 1.9L displacement w/4-lobe rotor design
    * Fuel delivery: SFI; center feed
    * Ignition: direct-mount ignition coils; extended-life dual platinum-tipped spark plugs
    * Compression ratio: 9.0:1
    * Horsepower (hp / kW @ rpm): 550 / 410 @ 6200 (est)
    * Torque (lb-ft / Nm @ rpm): 550 / 745 @ 6200 (est)
    * Recommended fuel: premium recommended but not required

Chassis & Suspension
    * Front suspension: independent SLA; 29-mm hollow stabilizer bar; elastomeric handling and ride bushings; 65-N/mm spring rate; Magnetic Ride Control with electro-magnetically controlled shocks
    * Rear suspension: independent SLA; 24-mm solid stabilizer bar; elastomeric trailing arm bushing; 90-N/mm spring rate; Magnetic Ride Control with electro-magnetically controlled shocks
    * Wheels
          o 19 x 9-inch; forged alloy, 5-lug (front)
          o 19 x 9.5-inch, forged alloy, 5-lug (rear)
    * Tires
          o 255/40R19 Michelin PS2; summer Z-rated (front)
          o 285/35R19 Michelin PS2; summer Z-rated (rear)
    * Brakes: four-wheel disc with four-channel ABS, hydraulic brake assist and dynamic rear brake proportioning
    * Steering ratio: 16.1:1
    * Turn radius (ft / m): 37.9 / 11.55

Dimensions

    * Wheelbase (in / mm): 113.4 / 2880
    * Overall length (in / mm): 191.6 / 4866
    * Overall width (in / mm): 72.5 / 1842
    * Overall height (in / mm): 58.0 / 1472
    * Track (in / mm):
          o front: 61.8 / 1570
          o rear: 62.0 / 1575
    * Curb weight (lb / kg):
          o manual: 4200 / 1905 (est)
          o automatic: 4300 / 1950 (est)
    * Weight distribution (% front / rear): 54 / 46
    * Approach Angle (deg): 10.4
    * Departure Angle (deg): 18.3
    * Tumblehome (deg): 24.6

Cadillac STS, 2008

Cadillac STS, 2008

The 2008 Cadillac STS, featuring refreshed signature styling inside and out; a new, standard 298-horsepower (222 kW) V-6 engine; and a host of new vehicle technologies, debuts at New York Auto Show, April 6-15, at the Jacob Javits Convention Center.

Refreshed design, inside and out
With overall dimensions slightly increased, the new STS conveys more of the design flair that has become a Cadillac signature. Up front, the dual-textured, multi-faceted grille first seen on the Sixteen concept and incorporated on both the Escalade and soon-to-be-launched 2008 CTS, has been adapted to the STS, giving the luxury performance sedan a more sophisticated appearance. Vertically stacked headlamps with large, dual 70mm projector lenses are encased in an aluminized, single-piece bezel. High Intensity Discharge (HID) headlamps are now available on V-6 models.

Similarly, side air extractors, again inspired by the Sixteen and Escalade, are now incorporated in the front fenders of the STS.

New styling touches also include chrome-plated door handles and new lower rocker moldings that blend into the lower line of the vehicle for more presence and refinement.
At the rear, the new fascia is now body-color, and is highlighted with the addition of polished, aluminum three-inch exhaust tips.

New, polished 18-inch by 8-inch aluminum 14-spoke wheels are available. For these available wheels, Michelin W-rated, 235/50R18 tires are used up front, and the rear wheels are fitted with 255/45R18 all-season radials.

Inside, STS's luxurious interior includes a new steering wheel with available genuine Sapele Pommele wood trim. Sapele is an exotic wood more commonly used in fine furniture and musical instruments. A heated steering wheel also is available. The center stack of the instrument panel is revised with the addition of wood trim that has new metallic surroundings.

STS adds direct-injection V-6
For 2008, STS will be the first GM vehicle equipped with a new 3.6-liter direct-injected V-6 engine. The new base powerplant, with 298 horsepower (222 kW), delivers 40 more horsepower; and torque is increased to 268 lb.-ft. (371 Nm) - up from 252 lb.-ft. (348 Nm) on the current base engine.

The new direct-injected 3.6L will be mated to the Hydra-Matic 6L50 six-speed automatic transmission, the first pairing of this transmission with a V-6 engine. Additionally, the STS V-6 will continue to be available with all-wheel drive (AWD) for 2008.

Advantages of the new direct-injected engine include a 25-percent reduction in cold-start hydrocarbon emissions. Additionally, despite the 15-percent increase in power, fuel economy is expected to increase slightly.

Lane departure technology debuts
Continuing Cadillac's commitment to using advanced safety features, the 2008 STS will offer new features including a new performance handling package; enhanced variable-effort steering with StabiliTrak on V-8 models; and new lane departure warning and blind side alerts.

The new performance handling package will be available for V-8-equipped rear-wheel-drive and all-wheel-drive models and V-6-equipped rear-drive models. The package includes 18-inch by 8.5-inch aluminum alloy, chrome-plated wheels fitted with new P255/45R18 Michelin Pilot Sport summer-only tires.

Brembo brakes with four-piston calipers provide enhanced braking, with front rotors measuring 14-inch by 1.2-inch (355mm x 32mm) coupled with 14.4-inch by 1.1-inch (365mm x 28mm) rear rotors. All four rotors are vented.

In addition to controlling brakes and reducing engine power, the latest iteration of StabiliTrak combines active front steering to turn the front wheels into the skid when rear wheels lose traction. The system includes a new steering motor assembly combined with computer-driven electronic controls that measure wheel slippage at all four wheels independently during acceleration, braking and adverse road conditions.

To help alert drivers to maintain their position on the road, the STS will be available with a new lane departure system. Controlled by a camera located in the rearview mirror that reads the lines in the road, the system will alert drivers when they have strayed into another lane. Drivers will get both audible and visual alert cues.

Cadillac Provoq Concept, 2008

Cadillac Provoq Concept, 2008

The Cadillac Provoq fuel cell concept is the latest example of GM's groundbreaking E-Flex propulsion system, combining the new fifth-generation fuel cell system and a lithium-ion battery to produce an electrically driven vehicle that uses no petroleum and has no emission other than water. The concept's fifth-generation fuel cell technology is half the size of its predecessor, yet it has been developed to produce more power and performance.

Fuel-cell variant of the E-Flex system
The concept can drive 300 miles (483 km) on a single fill of hydrogen - with 280 miles (450 km) from hydrogen and 20 miles (32 km) on pure, battery electric energy.

A pair of 10,000 psi (700 bar) composite storage tanks beneath the rear cargo floor hold 13.2 pounds (6 kg) of hydrogen to feed the fuel cell stack, located under the hood. There, hydrogen mixes with oxygen to generate electricity - up to 88 kW continuous power. A lithium-ion battery pack can store up to a total of 9kWh of electrical energy and also provides a peak of 60 kW of power for additional performance.

The electricity generated by the fuel cell is distributed to a 70 kW co-axial drive system for the front wheels and individual, 40 kW wheel hub motors on the rear wheels, giving the Cadillac Provoq its all-wheel-drive traction and great driving dynamics. Its 0-60 mph (approximately 100 km/h) speed of 8.5 seconds is a more than 30-percent improvement over the previous-generation fuel cell system and with instantaneous torque to the wheels, it feels even faster. Provoq has a top speed of 100 mph (160 km/h).

Key features
With sleek, signature Cadillac bodywork, the Provoq concept redefines luxury crossovers, offering uncompromising passenger and cargo space to match its performance and cruising range. Additional vehicle features include:
    * Solar panel integrated in the roof to help power onboard accessories, such as the interior lights, audio system and more
    * Brake-by-wire technology
    * Front grille louvers that close at highway speed to enhance aerodynamics, and open at low speed to provide maximum cooling to the fuel cell stack

Purposefully dynamic design
The Provoq has a sleek, athletic shape that builds on the second generation of Cadillac's design renaissance, led by the 2008 CTS, with dynamic and purposeful features that support the hydrogen fuel cell powertrain and contribute to the vehicle's overall efficiency.

Highlights include:
    * Active front grille, with grille louvers that open when the fuel cell stack requires cooling
    * Full underbody aerodynamic cover
    * Left- and right-hand charging ports incorporated in stylish front fender vents
    * Flush door handles that feature push-to-release operation
    * Wind tunnel-shaped outside mirrors with integral turn signals
    * Center high-mounted rear stop lamp incorporated into full-width, wraparound spoiler
    * Signature vertical taillamps with subtle fin design
    * Side glass mounted flush with pillars
    * Wheels with clear-covered space between the spokes, creating a sleeker profile while maintaining Cadillac's signature bold wheel design
    * Low-drag roof rack

Kim points to the fender-mounted charge ports as prime example. They allow overnight, plug-in charging that extends the driving range. The ports have a satin-chrome appearance that incorporates an amber light to indicate the system is charging and a green light to indicate when charging is completed.
The vertical, neon-lit taillamps blend style with functionality, too, as their finned shape was designed to make the Provoq as aerodynamically efficient as possible.

The wheels are wrapped in custom Michelin tires incorporating Green-X technology. These low-rolling resistance tires feature a tread pattern that mimics the "H20" notation for water.

The tire designers and engineers at Michelin North America enthusiastically accepted GM's challenge to create a custom low-rolling resistance tire to complement the energy efficiency and reduced environmental footprint of the Cadillac Provoq. During the past 15 years, the tire maker has developed four generations of Michelin green energy-saving tires, and the team's no-compromises approach to the project helped reduce the Provoq's overall fuel consumption without sacrificing road performance, grip and safety.

When used in conjunction with the other energy-efficient solutions featured on the Cadillac Provoq, the benefits of Michelin green energy-saving tires include:
    * A reduction in the consumer's overall cost of ownership
    * An extended vehicle range through a more efficient use of on-board energy and its storage capacity
    * A reduction of vehicle impact on the environment through lower CO2 and particulate emissions.

Uncompromising interior
Like the exterior, the Provoq's interior blends style with function. It seats five and incorporates the comfort, convenience and infotainment features Cadillac customers seek. Most importantly, the fuel cell powertrain does not intrude on passenger or cargo room.

The hydrogen fuel tanks are mounted beneath the cargo floor, with the storage batteries located at the center of the chassis. The fuel cell stack is located under the hood, giving the Provoq the interior layout of a conventional crossover - including a full cargo area and a 60/40-split folding rear seat.

There may not be compromising reminders of the powertrain in the interior, but the Provoq carries the instantly identifiable hallmarks of a contemporary Cadillac interior, with an expressive, well-crafted design.
The interior has a contrasting, dark gray and light gray color scheme, with chrome and satin-chrome accents throughout. Ambient lighting extends across the instrument panel and into the door panels, as well as the foot wells, sills and under the seats.

A unique instrument cluster with large, reconfigurable LCD displays offers a multitude of vehicle information readouts, including fuel cell information and vehicle performance. Like the CTS, the Provoq has a prominent center stack that houses the audio and climate systems, as well as a navigation system that rises out of the top of the instrument panel. Also like the CTS, there is an integrated hard drive that stores navigation maps, thousands of songs and more.

Between the front bucket seats is a large center console with a fully enclosed storage compartment that is home to ports for USB-connected devices and other electronics. The console also has a cell phone holder with built-in Bluetooth and inductive charging. The compact shifting mechanism on the console uses shift-by-wire technology to engage the gears, resulting in more storage space within the console.

A variety of recycled and recyclable materials were used, as well. Highlights:
    * The headliner is wrapped in a fully recyclable soy-based material
    * The carpet is made of recycled polyester and jute
    * Leather used to cover the seats and instrumental panel is free of harmful chemicals
    * Xorel material used on the door panels and instrument panel; treated to perform as a carbon-fiber-type material
    * Chrome trim made with less-harmful materials

Cadillac CTS, 2008

Cadillac CTS, 2008

Aggressive and elegant, expressive and sophisticated, the 2008 Cadillac CTS exudes a dramatic design presence. This all-new luxury sedan not only pushes Cadillac's acclaimed design theme higher, it aims to redraw the boundaries of the normally conservative luxury sedan category. Inside and out, the 2008 CTS contradicts many traditional design conventions. CTS' design expresses its serious performance intent, yet also is more elegant and luxurious. It's a sedan in the heart of the luxury market, yet reaches for the charisma of a sports car. CTS is thoroughly new and contemporary, even while it evokes the grandeur of classic Cadillac cars.

Since the inception of the first-generation car in 2002, CTS is about trend-setting design. The edgy form of the CTS initially created controversy. But from the moment it hit the market, its design also attracted lots of buyers, with design often noted as a top reason for purchase. The all-new 2008 edition extends that edgy and contemporary character, with an injection of elegance.

On the exterior, there's no mistaking the five-passenger sedan's stronger stance, thanks to a two-inch wider track. Additionally, the overall shape of the CTS features a faster profile with more rake, coupled with surfaces that add elegance and grace. Borrowing from Cadillac's legendary heritage, design cues include vertically shaped headlights and taillamps, signature light emitting diode (LED) exterior lighting, horizontal spline lines and its dihedral-shaped hood, all highlighted with many bright and jeweled accents.

Just as definitive of CTS' evolution in design is the dramatically new interior. Like the exterior, it expresses luxury and performance themes with appointments that are both purposeful and elegant. Advances in surface development, technology, materials and construction combine to make the CTS cabin a compelling blend of technical sophistication, precise tailoring and luxurious character.

Exterior: sporty sophistication meets substance

Coupled with a new overall shape, the most evolutionary dimension of the 2008 CTS comes in the form of a two-inch wider track as a result of the addition of the new, optional all-wheel-drive configuration. The wider stance gives the new model a more planted, capable and well-grounded appearance that's exemplified by much tighter tire-to-fender relationships.

The wider stance also enables more tumblehome - the vehicle sides are sculpted inward - delivering an appearance of rear-wheel-drive performance with a lower roof line, without compromising headroom or a roomy interior.

Additionally, a wider, tapering sail panel, lower, more sculpted hood, smoother wheel housing lips and a tighter wheel-to-body relationship help communicate the CTS' agility as well as its sophistication and substance.

Seven-spoke, 17-inch wheels or available nine-spoke, 18-inch wheels surround larger high-performance brake calipers and rotors. Both painted and machined finishes are available for the standard 17-inch wheels. The larger, 18-inch wheels are available in a premium multicoat finish or a high-polish finish.

Inspired by Cadillac's landmark Sixteen concept car, the CTS front appearance is immediately recognizable, yet also is new. The large, chrome dual-textured grille is significantly more vertical in shape, and is both aggressive and intricate. A large center-positioned wreath and crest add to the three-dimensional face. The front fascia is balanced with vertically stacked headlamps with bright bezels stacked in a staircase-like array. The lower air intake is flanked on both sides with fog lamps and brake duct intakes.

Side air extractors located forward of the front doors are a modern homage to Cadillac's grand heritage. Additional bright details include chrome molding surrounding the side windows, and three-inch chromed exhaust outlets.

Even on the rear of the car, where many sedans are ordinary, Cadillac designers injected charisma. The vertical taillamps are a Cadillac trademark. The roofline and rear backlight have a coupe-like profile. At the centerline, the decklid carries the angular and directional theme of the front.

Dimensionally, the 2008 CTS is 191.6 inches (4766 mm) long, 72.5 inches (1841 mm) wide and 58 inches (1472 mm) in height. Wheelbase is 113.4 inches (2880 mm) with a front/rear track of 61.8 / 62.0 inches (1575 / 1585 mm).

Interior: performance and elegance combine

The 2008 CTS represents a new design theme for Cadillac interiors, emphasizing technical precision with elegant, hand-crafted details. Dramatically different from the original, the interior design is decidedly more upscale, with added ornamentation, luxury and attention to detail. Strict attention to packaging, premium materials, surface development and comfort combine to meet the discriminating tastes of luxury performance sedan buyers.

Upper instrument panel and door trim surfaces are hand-cut, sewn and wrapped by expert craftsmen. Analog instrumentation that is tightly framed with a compact hood tri-tubular, chromed cluster, is defined by bright accents. An integrated center stack design, with either a satin metallic finish or genuine Sapele wood, blends into the lower instrument panel that sweeps forward and away of front-seat occupants. The hand-assembled center console leads seamlessly into the center stack, providing a sportier "cockpit" feel for the driver and passenger without compromising space.

Heated and ventilated seats incorporate new "thin-seat" technology for maximum occupant comfort and enhanced rear-seat leg, knee and foot room. A signature V-shaped medallion appears as a decorative touch on the backs of the front seats. French stitching is used throughout the interior, including the upper instrument panel, door inserts, seats and the shifter boot.

Clean, white ambient light emitting diode (LED) soft backlighting is positioned in the door pulls, foot wells and recessed between the upper and lower instrument panels. The result is a dramatic effect similar to recessed lighting used in contemporary homes.

The leather-wrapped steering wheel includes standard integrated controls for cruise and audio system.

Inside and out, the 2008 CTS exemplifies an evolution of Cadillac design that achieves a remarkable combination of luxury, technology and performance in a sedan aimed at creating the desire and head-turning quotient normally reserved for sports cars.

New 3.6L V-6 VVT, six-speed automatic join powertrain lineup

The 2008 Cadillac CTS features GM's new 3.6L direct-injection V-6 VVT engine, delivering an estimated 300 horsepower (223 kW) and 270 lb.-ft. (366 Nm) of torque. This new powerplant is a compelling mixture of power, smoothness, efficiency and technical sophistication.

The 3.6L direct-injection engine will be the top-level engine option for the 2008 CTS, joining the existing 2.8L V-6 and 3.6L V-6. Designed to operate with regular unleaded gasoline, the new 3.6-liter direct-injection V-6 produces power similar to many V-8 engines, but with much better fuel economy. With direct injection, fuel is delivered directly to the combustion chamber to create a more complete burn of the air/fuel mixture. Less fuel is required to produce the equivalent horsepower, especially at normal cruising speeds, of a conventional port-injection combustion system.

The application of gasoline direct-injection technology on the 3.6L VVT engine contributes greatly to a 15-percent increase in horsepower; 8-percent increase in torque, and 3-percent improvement in brake-specific fuel consumption. Additionally, the application of direct injection reduces cold-start hydrocarbon emissions by 25 percent.

For the first time, the 2008 CTS will be available in both rear- and all-wheel-drive configurations. Additionally, the transmission lineup now consists only of six-speed units - an Aisin six-speed manual or - new for CTS - a Hydra-Matic 6L50 six-speed automatic.

The current 3.6L VVT engine that produces 258 horsepower (192 kW) and 252 lb.-ft (342 Nm) of torque will serve as the base engine in North America and will be available in rear- and all-wheel-drive layouts.

The 2.8L VVT engine will be available only on rear-drive export models of the CTS. The all-aluminum, 60-degree DOHC, four-valve-per-cylinder engine develops 210 horsepower (156 kW) at 6500 rpm and 194 lb.-ft. (263 Nm) of torque at 3200 rpm.

The Aisin six-speed manual transmission, introduced in 2005, is fully synchronized (including reverse) with a single overdrive. This allows for lower propshaft speeds and improved engine noise, vibration and harshness. A new short-throw shifter has been added for improved precision.

The Hydra-Matic 6L50 six-speed automatic is the same transmission introduced on the Cadillac STS-V in 2005, and is designed to decrease engine rpm and enhance overall fuel economy.

On vehicles equipped with the new all-wheel-drive system, the 6L50 will be equipped with a new active transfer case that automatically transfers torque from the rear to the front of the vehicle for optimal traction, safety and performance. A limited-slip differential also is available.

Chassis enhancements include all wheel drive, globally tested suspension

The 2008 CTS features a greatly revised chassis featuring a two-inch wider track and the application of all-wheel drive. The front track is increased to 61.8 inches (1569 mm), and rear track is now 62.0 inches (1575 mm). Wheelbase remains at 113.4 inches (2880 mm).

Cadillac engineers have designed and developed new geometry for both the independent short/long arm front suspension and the multilink rear suspension. Engineers implemented numerous tweaks and revisions to the suspension using extensive computer modeling, combined with development driving of prototype cars on roads all over the world, but mostly in North America, Europe and China . From famed tracks such as Germany 's Nürburgring to everyday roads in the U.S. and China, the CTS suspension was exhaustively tested and honed.

The use of aluminum in the upper and lower front control arms and knuckles helps reduce mass and contributes to higher limits in handling and dynamic wheel control. Front suspensions for the rear-drive model and the all-wheel-drive version, while similar, have been designed to best meet the chassis dynamics of the individual versions.

The engine cradle has six attachment points, two more than typically used on a performance sedan, to better handle heavier loads and engine vibration.

New for CTS is a tower-to-tower brace that adds cross-car stiffness and enhances the overall steering feel. This is an innovation from the high-performance CTS-V model that has been modified and adapted for use in the 2008 CTS.

The multilink rear suspension, with a fully isolated subframe, is an uncompromising design with excellent suspension kinematics that delivers a superior ride with excellent handling. The rear suspension design is shared in both the rear-wheel and all-wheel-drive models, and has been extensively revised to accommodate the larger rear track.

The 2008 CTS features standard 17-by-8-inch aluminum wheels paired with Michelin H-rated (P235/55R17) all-season radials. The optional performance suspension includes an 18- by- 8.5-inch wheel with the all-new Michelin Pilot Sport 2 (P235/50R18) tire that can either be V- or Y- (summer) rated..

Cadillac BLS Wagon, 2008

Cadillac BLS Wagon, 2008

Cadillac signature style
Clear, clean, crisp and sharply defined contours are Cadillac design signatures. An international team of designers, under the leadership of Ed Welburn, GM vice president of Global Design, created a BLS Wagon with a striking wedge shape that is emphasized by the tapered lines of the side windows.

The BLS Wagon also features jewel-like headlamps, fog lamps integrated into the body-colored bumper and a wide air intake below the grille. A narrow chrome strip runs along the side windows and the latest LED technology is used in the center high-mounted stop lamp, which is prominently positioned in the rear spoiler. Vertical taillamps, another Cadillac hallmark, play a prominent role in defining the elegant rear proportions of the BLS Wagon.

Luxurious, flexible interior and state-of-the-art infotainment systems

The BLS Wagon interior is highlighted by a three-spoke leather steering wheel and an analog clock in the center stack. The circular instruments have white numerals and red needles on a black background.

Flexibility and versatility define the rear seats and cargo area, which are designed to support a wide variety of luxury and leisure interests.

State-of-the-art infotainment systems include high-quality audio units from American sound specialist Bose, among others; a DVD navigation system with touch-screen operation; a Bluetooth-enabled cell phone system with a hands-free kit; and remote controls on the steering wheel.

Turbocharged diesel and turbocharged gasoline engines

The front-wheel-drive BLS Wagon is offered with a turbo-diesel and three turbocharged gasoline engines. The 1.9L four-cylinder diesel engine, with common-rail direct-injection technology, is fitted with a maintenance-free particulate filter and delivers 110 kW (150 hp) of power. The range of gasoline engines includes two 2.0L four-cylinder versions (129 kW / 175 hp and 154 kW / 210 hp), and a high-tech, 2.8L V-6 (188 kW / 255 hp) that features a twin-scroll turbocharger and variable phasing of the intake camshafts.

The BLS Wagon offers six-speed manual transmissions and five- or six-speed automatic transmissions, depending on engine. For BLS models equipped with an automatic transmission, a standard Sport Mode button allows the driver to select a sportier transmission shift pattern.

Comfort and driving dynamics
The chassis, which features MacPherson struts in front and a four-link rear axle, is designed to provide the agility customers expect from a luxury wagon. The chassis tuning ensures dynamic handling performance without compromising comfort and load capacity.
